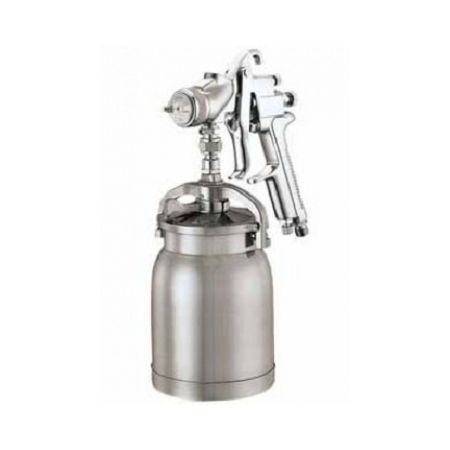

HVLP Turbine Spray Gun
Conventional Bottom-Feed Spray Gun, suitable for painting jobs on construction or industrial applications.
Description
● Conventional Bottom-Feed Spray Gun, suitable for painting jobs on construction or industrial applications.
● Nozzle Set is 100% strictly hand- checked to ensure the finest atomization, Fluid Nozzle and Needle are made of stainless steel, Air Cap is made of brass for ensuring a long lifetime.
Feature
● Strong aluminum construction
● Faster, easier, maintenance
● Smooth fluid flow
Model No | Type | Nozzle Size mm | Fluid Output cc/min | Pattern Width mm | Air Consumption l/min | Cup Capacity |
K-506S-08 | Pressure | 0.8 | 170 | 240 | 190 | without |
K-506S-11 | 1.1 | 210 | 240 | 190 | ||
K-506S-14 | Suction | 1.4 | 170 | 255 | 190 | 700 c.c or 1000c.c |
K-506S-18 | *1.8 | 190 | 265 | 200 | ||
K-506S-20 | 2.0 | 240 | 275 | 200 |
Model No K-506S | Air Inlet | Fluid Inlet | Working Pressure | Gun Weight |
K-506S-08 | 1/4''PF | 1/4" PF or 3/8"PF | 30-45psi | 486g |
K-506S-11 | ||||
K-506S-14 | ||||
K-506S-18 | ||||
K-506S-20 |
